Sinterit
Lisa Pro
Technical Specifications
- Technology: SLS - Selective Laser Sintering
- Laser type: IR Laser Diode, 5W; λ = 808 [nm] Rated to > 10,000 hrs
- Laser scanner type: XY
- Dimensions: 690x500x880 [mm] (27.2x19.7x34.6 [in])
- Weight: 90.0 [kg] (198 [lbs])
- Max size of print diagonally: 313 [mm] (12.3 [in])
- Max print volume: PA - 110x160x230 [mm] (4.3x6.3x9.1 [in]) TPU based / Flexible materials - 110x160x245 [mm] (4.3x6.3x9.6 [in])
- Size of Print Bed: 150x200x260 [mm] (5.9x7.9x10.2 [in])
- Layer height: Z (min - max) 0.075 - 0.175 [mm] (0.003 - 0.007 [in])
- Build Speed: up to 3 [mm/h] (0.11 [in/h])
- Min. wall thickness: from 0.4 [mm] (0.015 [in])
- Hole diameter: from 0.5 [mm] (0.020 [in])
- Moving part clearance: from 0.2 [mm] (0.008 [in])

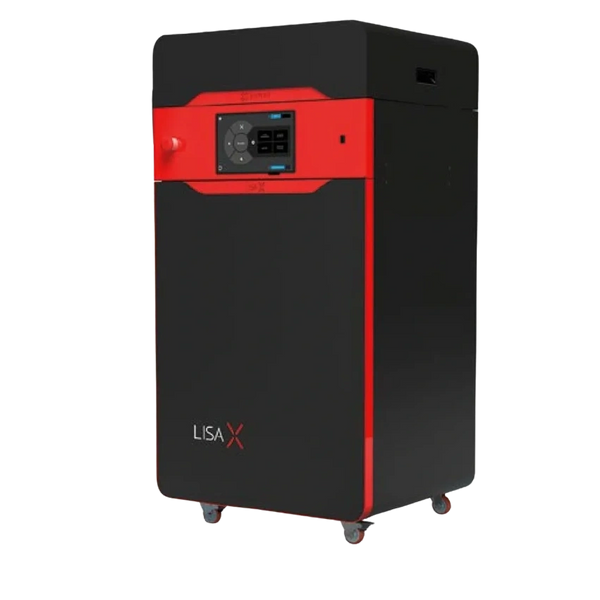

Lisa X
Technical Specifications
- Build Volume: 130 x 180 x 330 (W x D x H )mm 5.1 x 7.1 x 13.0 (W x D x H ) in
- Max. Print Diagonally: 398 mm 15.7 in
- Printer Dimensions: 650 x 610 x 1200 (W x D x H) mm 25.6 x 24.0 x 47.2 (W x D x H) in
- Build speed: 10-14 mm/h
- Scanning type: Galvo
- Laser type: IR 30 W
- Laser Spot Size: 650 [μm] / 0.0256 [in]
- Files: STL, 3MF , OBJ, 3DS, FBX, DAE
- Inert gas control system: yes

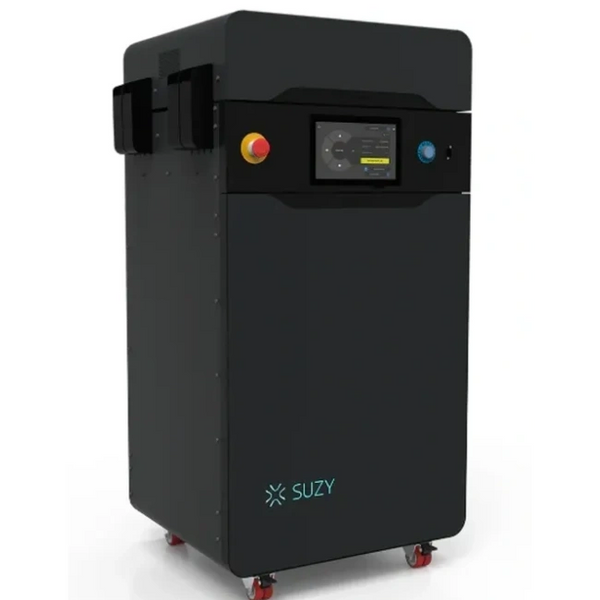

Suzy
Technical Specifications
- Laser type: IR Fiber Coupled Diode Laser, 30[W]; λ = 976 ± 3 [nm] rated to > 30,000 hrs
- Laser scanner type: Galvo
- Dimensions: 650x610x1200 [mm] (25.6×24.0x47.2 [in]
- Weight: 150 [kg] (330.7 [lbs])
- Max size of print diagonally: 398 [mm] (15.7 [in]
- Max print volume: PA: 130x180x330 [mm] (5.1×6.7×13.3 [in])
- Layer height: 0.075[mm] (0.003 [in]
- Build Speed: up to 20 [mm/h] (0.79 [in/h]
