E-Plus

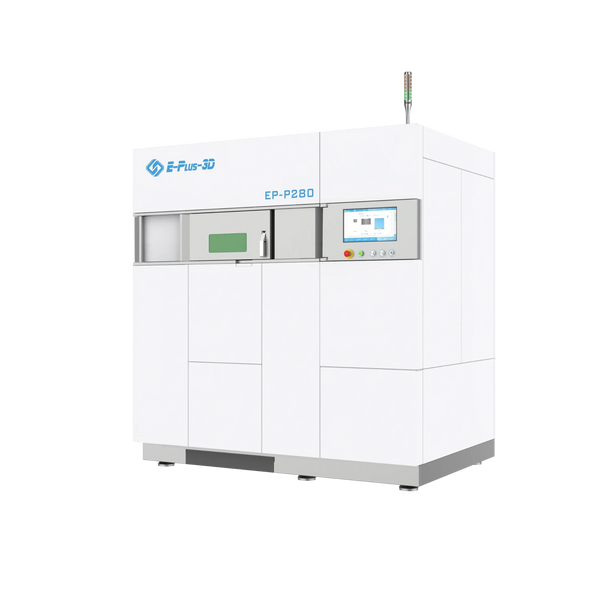

EP-P280
Technical Specifications
- Machine Model: EP-P280
- Building Chamber Size: 280 x 280 x 350 mm3 (L×W×H)
- Dimension: 1830 x 1277 x 2116 mm3 (L×W×H)
- Material: PS, TUP, PA11, PA12 and its composites
- Machine Weight: 1600 kg
- Scanning Speed: Max. 10 m/s
- Max. Chamber Temperature: 220 ℃
- Power Supply: AC 380 V, 63 A, 11.5 KW, 50/60 Hz
- Layer Thickness: 0.06 - 0.3 mm
- Laser Power: CO2 laser，55 W
- Building Speed: 1500 ml/h
- Gas Supply: N2
- Thermal Field Control: Independent four-zone temperature control system
- Temperature Regulation: Continuous real-time building surface temperature monitoring
- Control Software: Eplus3D Printing Software
- Output Data Format: STL, OBJ, STEP or other convertible file

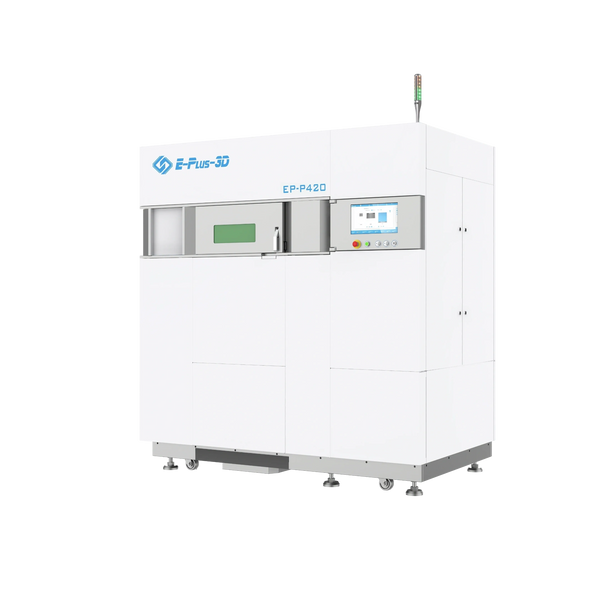

EP-P420
Technical Specifications
- Building Chamber: Size420×420×465mm³(L×W×H)
- Dimension: 1680*1400*2470mm³(L×W×H)
- Gas Supply: N2
- Machine Weight: 2000kg
- Scanning Speed: Max. 13m/s
- Max. Chamber: Temperature220℃
- Power Supply: AC 342-418V,12KW, 50/60HzLayer
- Thickness: 0.06-0.2mm
- Laser Power: CO₂ laser, 120W
- Building Speed:25mm/h
- Thermal Field: Control Independent four-zone temperature control system
- Temperature Regulation: Continuous real-time building surface temperature monitoring
- Control Software: Eplus3D Printing Software
- Output Data Format: STL. OBJ.STEP or another convertible file
- Material: PA11, PA12, PA6 and it's composites

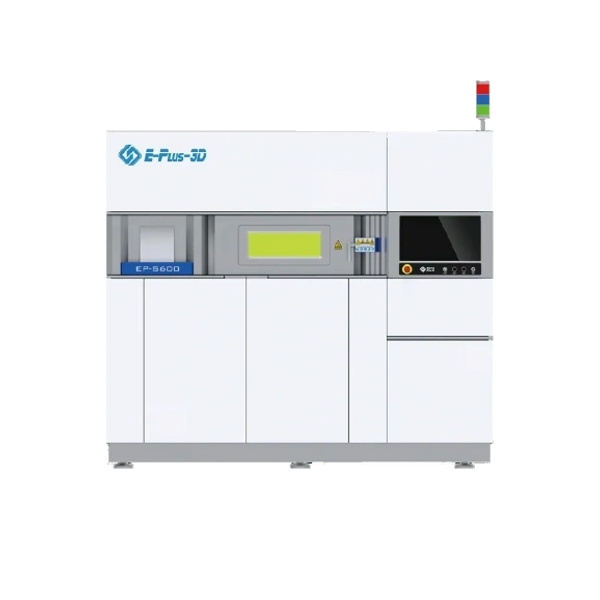

EP-S600
Technical Specifications
- Building Volume: 420 x 380 x 600 mm
- Dimension: 2480 x 1415 x 2160 mm
- Material: PP and its composites
- Machine Weight: 1600 kg
- Scanning Speed: Max. 15 m/s
- Max. Chamber Temperature: 130 °C
- Power Supply: AC 380 V, 50 / 60 Hz, 16 A, 6.5 kW
- Layer Thickness: 0.1 - 0.3 mm
- Laser Power: CO2 Laser, 50 W and 120 W optional
- Output Data Format: STL .OBJ .STEP or other convertible file
EP-C5050 Wax/Sand
Technical Specifications
- Material: PSB, PP, PE, etc.
- Build Volume: 520 x 520 x 500 mm( L x W x H )
- Layer Thickness: 0.08-0.3mm
- Machine Weight:1600kg
- Material Feed Mode: Double-cylinder feeding Bi-directional powder feeding
- Laser Power: CO₂ laser, 55W
- Scanning System: Dynamic scanning focus
- Scanning Speed: 6 m/s
- Control Software: Eplus3D Printing Software
- OS System Support: Windows 7
- Power Supply: 380V, 22A, 10kW, 50/60Hz
- Temperature Regulation: Continuous real-time building surface temperature monitoring
- Dimension: 2000 x 1300 x 2300 mm ( L x W x H )
- Output Data: FormatSTL or another convertible file
