E-Plus
EP-A450
Technical Specifications
- Build Volume (X*Y*Z)450 x 450 x 350 mm
- Layer Thickness0.05 mm~0.25 mm to choose
- Spot Size 0.08 mm~0.2 mm (standard) 0.08 mm~0.8 mm (optional Variobeam)
- Build Accuracy*± 0.1 mm (L＜100 mm)± 0.1% xL (L ≥100 mm)
- Laser Diode-pumped solid-state laser Nd:YVO4
wavelength:355 nm - Scanning Speed 15m/s (Max), 6-10m/s (Typical)
- Dimensions (L*W*H)1350*1200 *2050 mm
- Net Weight 900 kg
- Resin 120 kg
- Power Supply 200-240 VAC, 50/60 Hz, single phase
- Software EP-Resin
- Input Data*.stl /*.slc/*.cli/*.epi
- Working Platform Marble platform (A0 level)
- Material Level Position Accuracy± 0.02
- Focus Lens F-theta lens system
- Optical Scanning System High-speed scanning galvanometer
- Operating Environment Temperature 20-26 ; relative humidity <40% (non-condensing)

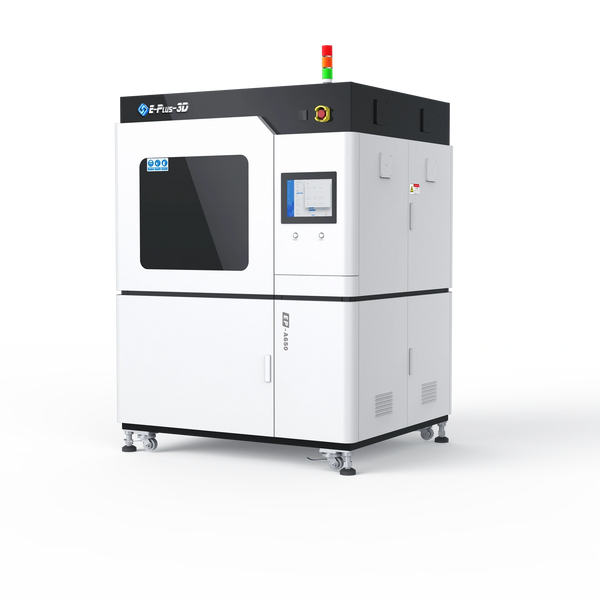

EP-A650
Technical Specifications
- Build Volume (X*Y*Z)650 x 600 x 400 mm
- Layer Thickness 0.05 mm~0.25 mm to choose
- Spot Size 0.08 mm~0.2 mm (standard) 0.08 mm~0.8 mm (optional Variobeam)
- Build Accuracy*± 0.1 mm (L＜100 mm)± 0.1% xL (L ≥100 mm)
- Laser Diode-pumped solid-state laser Nd: YVO4 wavelength:355 nm
- Scanning Speed 15m/s (Max), 6-10m/s (Typical)
- Dimensions (L*W*H)1500 *1300*2200 mm
- Net Weight 1050 kg
- Resin 250 kg
- Power Supply 200-240 VAC, 50/60 Hz, single phase
- Software EP-Resin
- Input Data*.stl /*.slc/*.cli/*.epi
- Working Platform Marble platform (A0 level)
- Material Level Position Accuracy± 0.02
- Focus Lens F-theta lens system
- Optical Scanning System High-speed scanning galvanometer
- Operating Environment Temperature 20-26 ; relative humidity <40% (non-condensing)

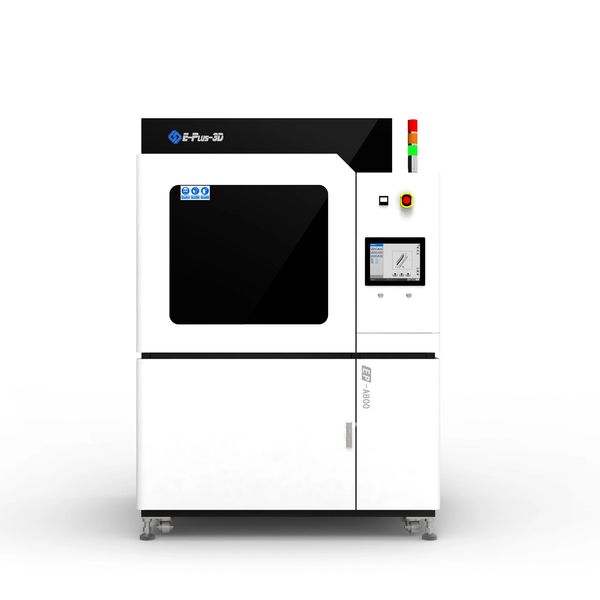

EP-A800
Technical Specifications
- Build Volume: (X*Y*Z)800mm*800mm*450mm （The height can be customized up to 550mm）
- Build Accuracy:*± 0.15 mm (L＜100 mm)± 0.15% xL (L ≥100 mm)
- Layer Thickness: 0.05mm~0.25mm
- Scan speed: Typical speed: 6－12m/s
- Max. weight of one-time produced part: 120Kg
- Laser: DPSSL (Diode-pumped solid-state laser), 3W
- Optical scanning system: Galvanometer Scanners system
- Optical focusing system F-theta lens
- Spot size: Invariant spot: 0.08-0.2mm | Variant spot: 0.08~0.8mm（VarioBeam Module required）
- Motion platform: Marble platform（00 level）
- Control software: Self-developed software EPResin
- Data format*.stl /*.slc/*.cli/*.epi
- Equipment IPC: I3，2.1GHz Frequency, 4GB Memory; Windows® 7 or Windows® 10
- Dimensions: (L*W*H)Without package: 1650mm*1500mm*2250mm
With package: 1850mm*1700mm*2500mm - Machine Weight: 1500KG（without resin）
- Power Supply: 200-240VAC,50/60Hz, single phase
- Operating Temperature 20-26℃
- Operating Humidity: Less than 40%
- Installation ground Solid, level, no vibration
