Sand 3D Printing

FHZL Sand 3D Printer

The FHZL Sand 3D Printer is an industrial-grade additive manufacturing solution designed for high-speed, high-precision sand mold and core printing. Using binder jetting technology, it eliminates the need for traditional pattern-making, enabling rapid and cost-effective production of complex casting molds.

  • Ideal for foundries, automotive, and aerospace industries, the FHZL sand printer delivers intricate geometries, high dimensional accuracy, and excellent surface quality, significantly reducing lead times and production costs.



Additional Features:

  • Printing Materials: Compatible with various sands (silica, ceramic, synthetic) and binders (furan resin, inorganic binders).​
  • Applications: Suitable for producing molds and cores for aluminum, iron, steel, and copper castings across industries such as automotive, aerospace, and engineering machinery.

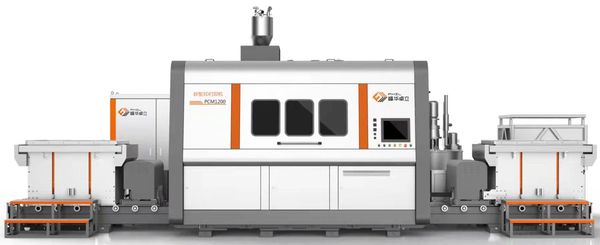

PCM1200

  • Build Volume: 1200 × 1000 × 800 mm (960 liters)
  • Print Head Quantity: 4 units​
  • Build Efficiency: Up to 120 liters per hour
  • Layer Thickness: Adjustable between 0.3–0.5 mm​
  • Build Accuracy: ±0.3 mm​
  • Tensile Strength: 0.8–2.0 MPa, up to 2.5 MPa depending on sand type
  • Gas Evolution at 850°C: Furan binder: ≤18 ml/g, minimum 13 ml/g; Inorganic binder: ≤14 ml/g, both depending on sand type​
  • Job Box Quantity: 1 or 2​
  • Applications: Suitable for aluminum, iron, stainless steel, steel, and copper casting​
  • Printing Materials: Binders include furan resin and inorganic binders; activators; compatible with silica sand, ceramic sand, and synthetic sand

PCM1800

  • Build Volume: 1800 × 1000 × 700 mm
  • Printing Technology: Powder Binder Jetting (PBJ)​
  • Layer Thickness: 0.2–0.5 mm​
  • Printing Speed: 22 seconds per layer​
  • Number of Arrays and Nozzles: 4 arrays with 1024 nozzles each​
  • Productivity: Up to 147 liters per hour​
  • Accuracy: ±0.3 mm​
  • Number of Working Tanks: 1 or 2​
  • Binding Materials: Furan resins​
  • Main Materials: Compatible with quartz, calcined, synthetic, chromite sand, and others​

PCM2200



  • Build Volume: 2200 × 1000 × 800 mm​
  • Applications: Ideal for mass production of silicon sand molds, widely used in industries such as aerospace and large pump body manufacturing
