Powder Bed Fusion (PBF)
E-plus 3D
Eplus 3D specializes in industrial-grade metal 3D printers utilizing Selective Laser Melting (SLM) technology. These machines are engineered to produce high-quality, complex metal parts for industries such as aerospace, automotive, medical, and tooling. Eplus3D's metal 3D printers are compatible with a variety of materials, including titanium alloys, aluminum alloys, nickel-based alloys, maraging steel, stainless steel, cobalt chrome, and copper alloys.
Models & Platform Sizes:
- EP-M150 – Ø153 × 120 mm
- EP-M260 – 260 × 260 × 390 mm

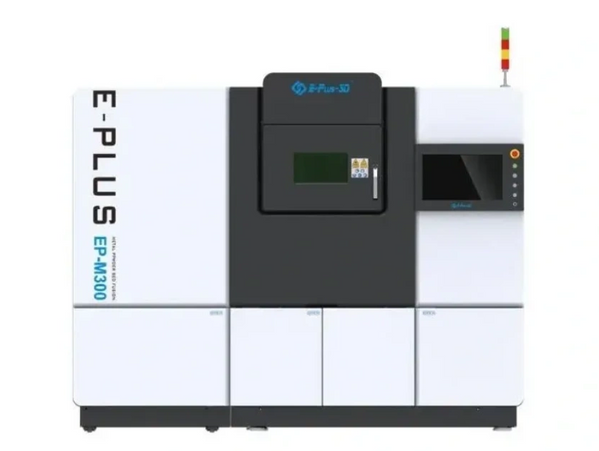

- EP-M300 – 300 × 300 × 450 mm
- EP-M450 – 450 × 450 × 550 mm
- EP-M450H – 450 × 450 × 1080 mm
- EP-M650 – 650 × 650 × 800 mm
- EP-M825 – 825 × 825 × 1100 mm
- EP-M1250 – 1250 × 1250 × 1350 mm
- EP-M1550 – 1550 × 1550 × 1100 mm
- EP-M2050 – 2050 × 2050 × 1100 mm

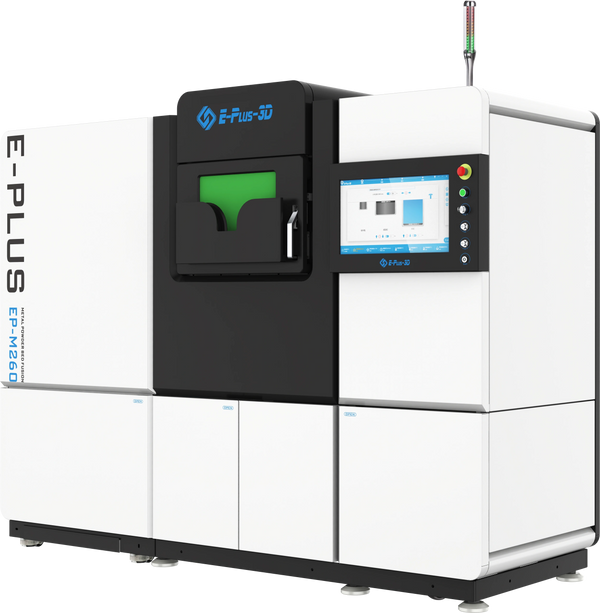

EP-M260
Technical Spcifications
- Build Volume: 266 × 266 × 390 mm
- Optical System: 500/1000 W fiber laser (single or dual-laser options)
- Spot Size: 70–100 µm
- Max Scan Speed: 8 m/s
- Layer Thickness: 20–120 µm
- Build Speed: Single laser: 15–35 cm³/h; Dual laser: 25–55 cm³/h

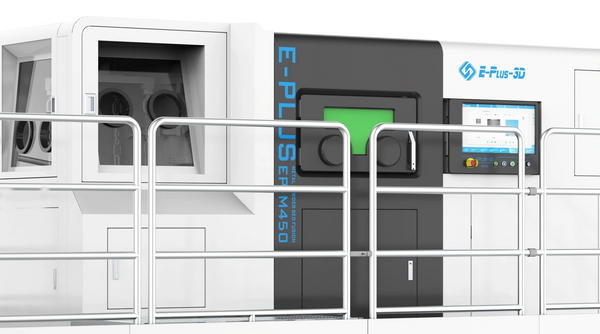

EP-M450
Technical Spcifications
- Build Volume: 450 × 450 × 550 mm
- Optical System: 1/2/4 × 500 W fiber lasers (700 W and 1000 W options available)
- Spot Size: 70–120 µm
- Max Scan Speed: 8 m/s
- Layer Thickness: 20–120 µm
- Theoretical Print Speed: Up to 190 cm³/h
- Materials: Titanium alloys, aluminum alloys, nickel alloys, maraging steel, stainless steel, cobalt chrome, copper alloys, etc.
- Power Supply: 380 V, 50/60 Hz, 14–22 kW
- Gas Supply: Argon/Nitrogen
- Oxygen Content: ≤100 ppm
- Dimensions (W × D × H): 5670 × 3700 × 3325 mm
- Weight: 10,000 kg
- Software: EPControl, EPHatch
- Input Data Format: STL or other convertible files

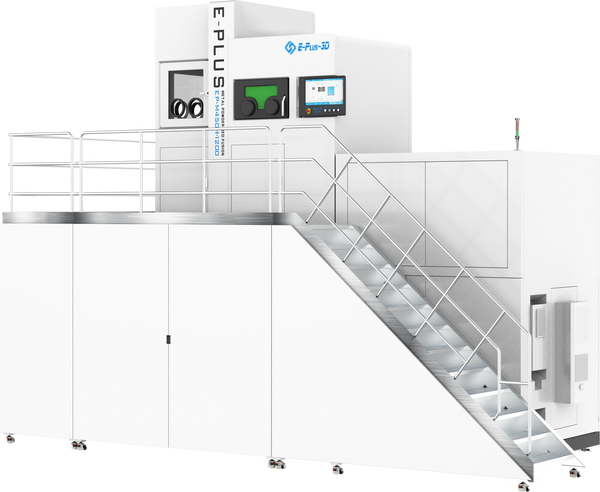

EP-M450H
Technical Spcifications
- Build Volume: 456 × 456 × 1080 mm
- Optical System: Single or dual 500 W fiber lasers
- Spot Size: 80–120 µm
- Max Scan Speed: 8 m/s
- Layer Thickness: 20–120 µm
- Build Speed: Single laser: 15–35 cm³/h; Dual laser: 35–65 cm³/h
- Materials: Titanium alloys, aluminum alloys, nickel alloys, maraging steel, stainless steel, cobalt chrome, copper alloys, etc.
- Power Supply: 380 V, 46.4 A, 10 kW, 50/60 Hz (dual laser: 13 kW, 50 A)
- Gas Supply: Argon/Nitrogen
- Oxygen Content: ≤100 ppm
- Dimensions (W × D × H): 6410 × 3670 × 4850 mm
- Weight: 15,000 kg
- Software: EP-Hatch, EP Control
- Input Data Format: STL or other convertible files
EP-M650
Technical Spcifications
- Build Volume: 650 × 650 × 800 mm
- Optical System: 4/6/8 × 500 W fiber lasers (700 W and 1000 W options available)
- Spot Size: 70–120 µm
- Max Scan Speed: 8 m/s
- Layer Thickness: 20–120 µm
- Theoretical Print Speed: Up to 320 cm³/h
- Materials: Titanium alloys, aluminum alloys, nickel alloys, maraging steel, stainless steel, cobalt chrome, copper alloys, etc.
- Substrate Heating Temperature: 200°C
- Power Supply: 380 V, 50/60 Hz, 18–23 kW
- Gas Supply: Argon/Nitrogen
- Oxygen Content: ≤100 ppm
- Dimensions (W × D × H): 6800 × 3945 × 3785 mm
- Weight: 15,000 kg
- Software: EPControl, EPHatch
- Input Data Format: STL or other convertible files
EP-M825
Technical Spcifications
- Build Volume: 825 × 825 × 1100 mm
- Optical System: 10 × 500 W fiber lasers
- Spot Size: 70–120 μm
- Max Scan Speed: 8 m/s
- Layer Thickness: 20–120 μm
- Theoretical Print Speed: Up to 410 cm³/h
- Materials: Titanium alloys, aluminum alloys, nickel alloys, maraging steel, stainless steel, cobalt chrome, copper alloys, etc.
- Power Supply: 380 V, 50/60 Hz, power consumption not specified
- Gas Supply: Argon/Nitrogen
- Oxygen Content: ≤100 ppm
- Dimensions (W × D × H): Not specified
- Weight: Not specified
- Software: EPControl, EPHatch
- Input Data Format: SLC, CLI
EP-M1250
Technical Spcifications
- Build Volume: 1250 × 1250 × 1350 mm
- Optical System: 9 × 500 W fiber lasers
- Spot Size: 70–120 μm
- Max Scan Speed: 8 m/s
- Layer Thickness: 20–120 μm
- Materials: Titanium alloys, aluminum alloys, nickel alloys, maraging steel, stainless steel, cobalt chrome, copper alloys, etc.
- Power Supply: 380 V, 50/60 Hz, power consumption not specified
- Gas Supply: Argon/Nitrogen
- Oxygen Content: ≤100 ppm
- Dimensions (W × D × H): Not specified
- Weight: Not specified
- Software: EPControl, EPHatch
- Input Data Format: SLC, CLI
EP-M1550
Technical Spcifications
- Build Volume: 1550 × 1550 × 1100 mm
- Optical System: 16/25 × 500 W fiber lasers (700 W and 1000 W options available)
- Spot Size: 70–120 μm
- Max Scan Speed: 8 m/s
- Layer Thickness: 20–120 μm
- Theoretical Print Speed: Up to 650 cm³/h
- Materials: Titanium alloys, aluminum alloys, nickel alloys, maraging steel, stainless steel, cobalt chrome, copper alloys, etc.
- Power Supply: 380 V, 50/60 Hz, 77 kW
- Gas Supply: Argon/Nitrogen
- Oxygen Content: ≤100 ppm
- Dimensions (W × D × H): Not specified
- Software: EPControl, EPHatch
- Input Data Format: SLC, CLI
EP-M2050
Technical Spcifications
- Build Volume: 2050 × 2050 × 1100 mm (Z-axis customizable up to 2000 mm)
- Optical System: 36/49/64 × 500 W fiber lasers (700 W and 1000 W options available)
- Spot Size: 70–120 μm
- Max Scan Speed: 8 m/s
- Layer Thickness: 20–120 μm
- Theoretical Print Speed: Up to 1080 cm³/h
- Materials: Titanium alloys, aluminum alloys, nickel alloys, maraging steel, stainless steel, cobalt chrome, copper alloys, etc.
- Power Supply: 380 V, 50/60 Hz, 77 kW
- Gas Supply: Argon/Nitrogen
- Oxygen Content: ≤100 ppm
- Dimensions (W × D × H): Not specified
- Weight: Not specified
- Software: EPControl, EPHatch
- Input Data Format: SLC, CLI
