Bound Metal Deposition (BMD)

---

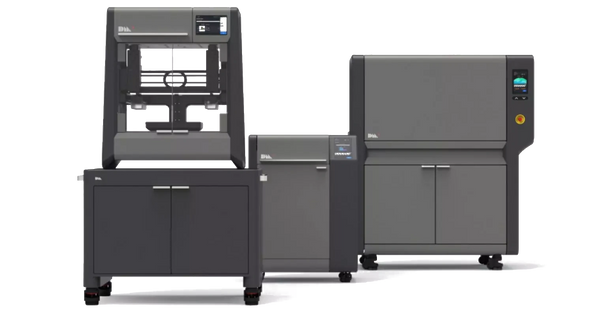

 Desktop Metal –  Desktop Metal's Studio System™ 2  is a safe, office-friendly metal 3D printing technology that extrudes bound metal rods (metal + polymer) to create parts, which are then debound and sintered into dense metal components—ideal for prototyping and low-volume production without loose powders or lasers.

Technical Specifications

Printer:

• Print Technology: Bound Metal Deposition™​
• Support Technology: Separable Supports™​
• Interface Technology: Ceramic Release Layer™​
• Build Volume: 300 x 200 x 200 mm (12 x 8 x 8 in)​
• Layer Height:
  • High-resolution printhead: 50–150 μm​
  • Standard-resolution printhead: 150–300 μm​
• Max Build Weight (Green State): 6.5 kg (14.3 lbs)​
• External Dimensions: 948 x 823 x 529 mm (37.3 x 32.4 x 20.8 in)​
• Weight: 97 kg (214 lbs)​
• Power Requirements: 100–130 VAC or 200–240 VAC, 50/60 Hz, 1-phase​

Furnace:

• Retort Size: 300 x 200 x 170 mm (12 x 8 x 6.7 in)​
• Peak Temperature: 1400°C (2552°F)​
• Environment: Argon, Argon + Hydrogen Blend, Inert vacuum sintering​
